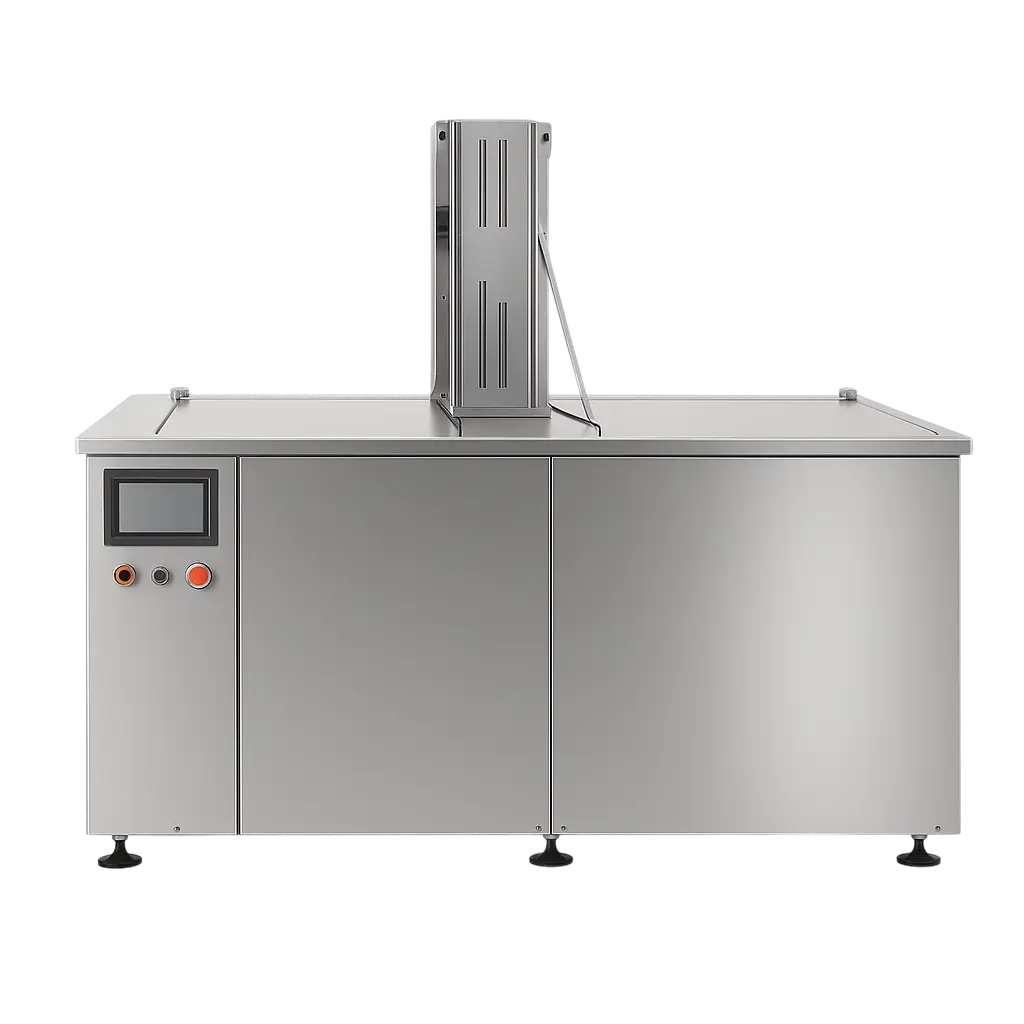

Ultrasonic Cleaner BMG Series
Our BMG range of standardized ultrasonic cleaning machines includes a pneumatic lift for agitating parts during cleaning. This back-and-forth motion will increase cleaning performance and make it easier to place and remove parts.
- Tank capacity
From / to
170 – 2000 L
- Ultrasonic power
From / to
1 – 12 kW
- Heating power
From / to
3 – 36 kW
OPTIONAL
- Reusable stainless steel filter
- Automatic water refilling system
- Liquid detergent dosing system
- Ceramic heating elements protected in a stainless steel casing
- External drain pump
BENEFITS
- Compact industrial machine
- Maximum reliability
- Guaranteed profitability
- Big savings
- Ergonomic design
- High cleaning performance
Machinery and equipment
BMG-170
BMG-300
BMG-400
BMG-600
BMG-1000
BMG-2000
Cleaning process
Preparation
The tank is filled with water and chemical (at a standard concentration of 5-15%) and heated to 60-90º.
Charging and immersion
The pieces are placed on the lifting platform (ACM models) or on the lower rack of the tank (ICM models), and submerged in the bath.
Automatic cleaning
This automatic cleaning process can take anywhere from a few minutes to several hours, depending on the cleaning application.
Rinse and dry
Finally, the pieces are removed from the bath, rinsed with water, and dried.
