Large Ultrasonic Cleaning Tank for Heavy Duty Cleaning

HX ultrasonic cleaning equipment was specially designed to eliminate heavy contaminants on large industrial parts with the length up to 9m and with the maximum diameter up to 1,5m.

The most common application for this large ultrasonic cleaning unit is ultrasonic scale elimination from industrial heat exchangers. A heat exchanger is a system used to transfer heat between two or more fluids. Heat exchangers are used in both cooling and heating processes. During the heat transfer, some sediments can accumulate on the internal surface of the device. This accumulated dirt decreases the performance of heat exchanger and creates energy and performance lost, so regular maintenance and removal of scaling has to be done.

Traditional cleaning process is hydroblasting of heat exchanger tubes. This procedure consists of high pressure water jetting of heat exchanger which removes the sediments. Water jetting is time and cost demanding operation as it requires manpower to perform the cleaning and also creates huge amount of liquid residue which requires water treatment.

Ultratecno performed several case studies to develop the best cleaning procedure for this challenging application and as a result implemented HX  ultrasonic product line.

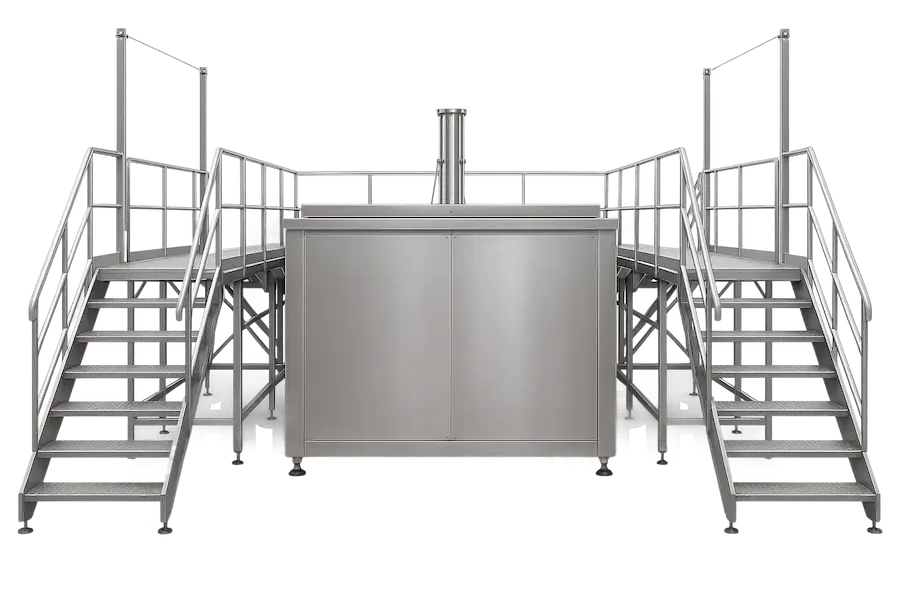

heat exchanger cleaning machine

If you are interested in detailed technical information about  ultrasonic heat exchanger cleaning, do not hesitate to contact us.

Main equipment characteristics:

  • Specially designed for heavy duty applications as heat exchanger cleaning in refineries, power plants and industrial centers.
  • Powerful low frequency ultrasonic cleaning technology to remove hydrocarbons, scale and other resistant process foulants.
  • Transportable unit with standardized external dimensions for overseas shipment. Build-in the 40 feet container with easy set up at customer´s place.
  • Adapted for exterior use. Ultrasonic tank with special construction in stainless steel AISI316L with IP65 protection grade to operate outdoors at customer’s site
  • Ultrasonic tank can work in remote areas thanks to optional cogeneration equipment.
  • Available in various standard sizes, but also in custom construction for special applications:

HX-24000W

HX-33000W

HX-41000W

HX-49000W

HX-57000W

Dimensions – Meters
4.2 X 2.5 X 2.3
5.7 X 2.5 X 2.3
7.1 X 2.5 X 2.3
8.5 X 2.5 X 2.3
10 X 2.5 X 2.3
Tank – Liters
24.150 lt
32.775 lt
40.825 lt
48.875 lt
57.500 lt
US Total Power – kW
128 kW
160 kW
208 kW
240 kW
272 kW
Heating – kW
162 kW
216 kW
270 kW
324 kW
378 kW
Heating time to  65ºC
15h
15h
15h
15h
15h
